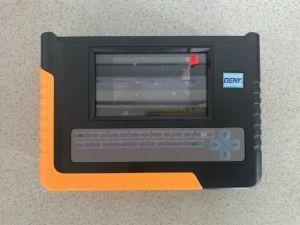

High Precision 0.1% Single Phase Standard Meter YC2000A With Clamp Options

Name: High Precision 01 Single Phase Standard Meter YC2000A With Clamp Options
Brand: GENY
Price: 1 USD

Certification : CE, ISO

Supply Ability : 100/Year

Payment Terms : T/T

Brand Name : GENY

Model Number : YC2000A

Place of Origin : CHINA

Model NO. : YC2000A

After-sales Service : 1 Year

Warranty : 1 Year

Application : Electromagnetic Instrument

Power : Electricity

Voltage Output : 10V-420V

Current Output : 100A

Thermocouple (TC) : No

Resistance-Temperature Detector (RTD) : No

LCD Display : With LCD Display

Customized : Customized

Weight : 0.70kg

Trademark : GENY

Transport Package : Carton

Specification : 190x140x50

Origin : China

HS Code : 9030849000

Port : Guangzhou, China

Contact Now

190x140x50 High Precision 0.1% Single Phase Portable Standard Meter with Clamp Options

Product Description

High accuracy 0.3%
External power supply r test lead power,suit for Fieldwork
With 2pcs clamp CT to test ratio of current transformer. (Optional)
Large size display screen, direct viewing and convenient
Internal communication port for PC control
Multipower supply ways for different testing occasions.
Large capacity storage device for mass memory

Product Parameters

Application Conditlons and Requirements
Environment			Safety
Operation Temperature	Relative Humidity	Altitude	IP Class	Conformity
-25°C-+45°C	40%--95%	<2500m	IP51	CE conform

Type	YC-2000A
Test voltage
Range	10-420V
Error	±0.1%
Harmonic	2nd-51st
Test current
Range(direct connection)	--
Range(clamp CT)	100A
	5A,500A,1000A,2000A
	(option)
Error(direct connection)	--
Error(clamp CT)	±0.2%(5A,100A)
Error(clamp CT)	±0.5%(other)
Harmonic	2nd-51st
Power measure error
Active power(direct connection)	--
Active power(clamp CT)	±0.3%(5A,100A)
Active power(clamp CT)	±0.5%(other)
Reactive power(direct)	--
Reactive power(clamp CT)	±0.5%
Energy measure error
Active energy(direct)	--
Active energy(clamp CT)	±0.3%(5A,100A)
Active energy(clamp CT)	±0.5%(other)
Reactive energy(direct)
Reactive energy(clamp CT)	±0.5%
Phase angle
Range	0°-360°
Error	±0.1
Frequency
Range	45Hz-65Hz
Pulse output
High frequency output(CH)	--
Low frequency	1000imp/kWh
Pulse ratioPulse ratio	1:01
Output level	5V
Pulse input
Input channel	1
Input level	5-10V
Input frequency	Max.100Hz
Display
Resolution	3.5"TFT color(320x240)
Function
Vector diagram
Waveform
Energy accumulation
CT ratio test
Local parameter input
Wiring emulation
Self-calibration
Recorder check
Data storage
Data storage qty	1000
External extend
Screen printing
Communication port	Rs232
Communication with
Upload data
External mini printer
External keyboard
Other
Voltage Supply way	External power
Voltage Supply way	test lead power
Voltage Supply	45-420V,50/60Hz
Dimensions(WxHxD)	190x140x50
Weight(kg)	0.7kg

Company Profile

Guangzhou Yangcheng Science & Technology Enterprises Co., Ltd. was established in 1987. We are a multi-industry enterprise group with several hundred million RMB of annual sales in the industries of electrical measuring equipment, industrial and domestic automation engineering, biology engineering, and business trade. We have 464 employees today, among which 156 staffs engaged in the manufacture and business of electrical measuring equipment.

In 2002, the electric measurement department of the company separated and set up a wholly-owned subsidiary Guangzhou GENY Electric Co., Ltd. It is a Hi-Tech company specialized in electricity measuring equipment.

Nowadays, we are one of the biggest and leading manufacturers of electrical measuring equipment in China. We have sold more than 7000(Seven Thousand) sets of energy meter test benches and more than 10000(Ten Thousand) sets of portable calibrators in the China market so far.

Our main products of electrical measuring equipment

Single/Three Phase Electric Energy Meter Test Bench
Single/Three Phase Portable Standard Meter
Single/Three Phase standard meter
Single/Three Phase Power Source
Single/Three Phase Portable Power Source etc.

Our Advantages

We have been engaged in the Electric Energy Meter measurement field for over twenty years as an all-time technological leader and creator of new technology in the Electric Energy Meter calibrator field. We have an excellent R&D team that has devoted to the technical development of Electric Energy Meter test instruments for a long time, we can satisfy different requirements of all kinds of customers.
All of our staff have received specialized training and acquired good professional quality and skills. The company adopts ISO9001 management and we have passed the authentication of ISO9001-2000 in 2002 and all staff has taken TQM training. Yangcheng has now realized ISO9001 control of R&D production, marketing & sales, and service completely to guarantee product quality.
We have a consummate marketing network and we offer a competitive price.
Our well-trained service team is able to provide maintenance, training, scheme design, and software update services to each customer for the first time.
